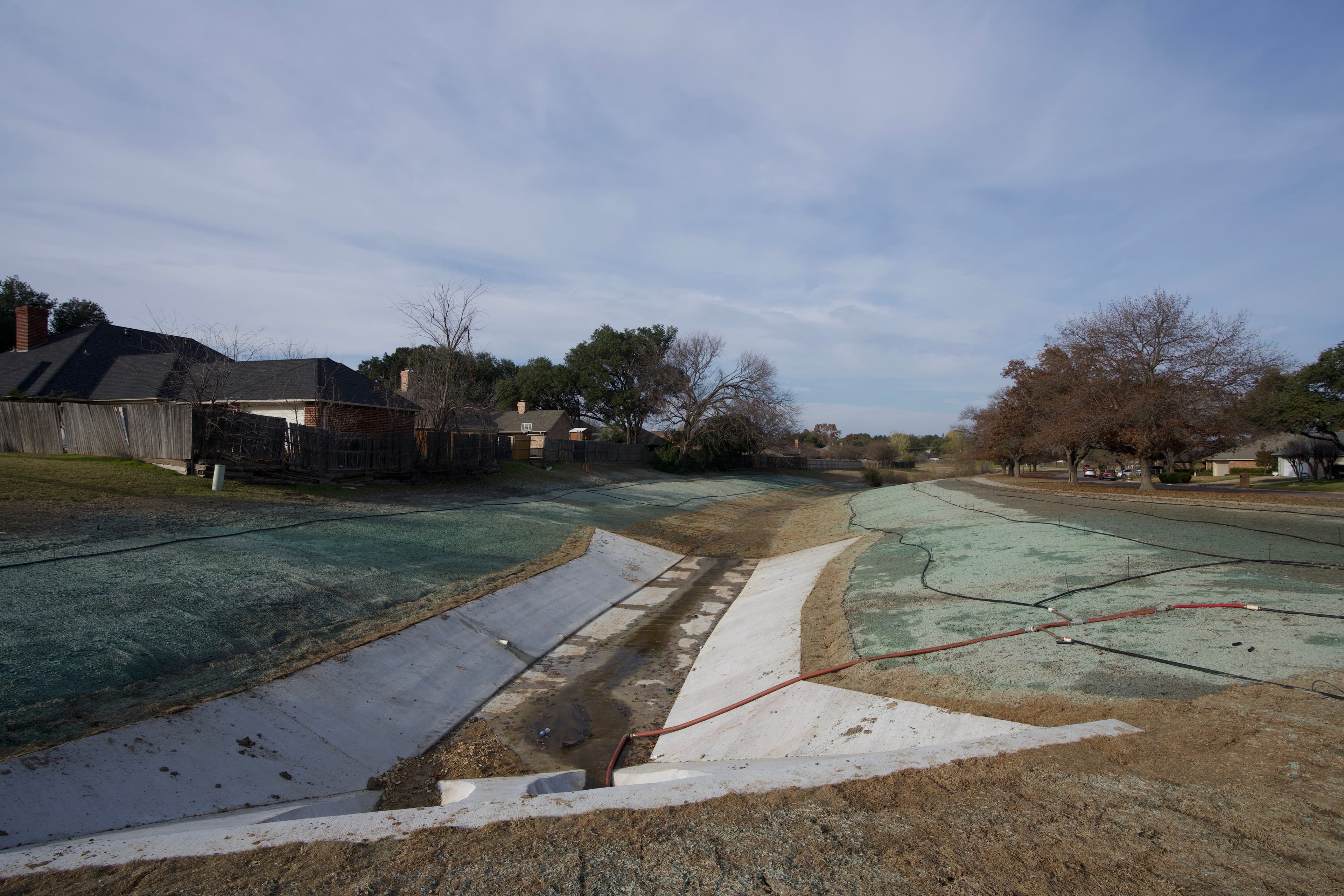

Protecting homes from destructive erosion and slope instability with PROPEX

OVERVIEW

Candleridge Park is an area located in the city of Fort Worth, Texas that comprises numerous walking trails, duck ponds, and neighborhoods. One of the neighborhoods in the area was facing erosion issues caused by slope instability on the adjacent property. It was crucial to address this problem promptly because it could lead to foundation exposure and compromise the structural integrity of nearby houses.

CHALLENGE

To mitigate the risk, a channel outlet was constructed to divert water away from the endangered houses. The outlet featured large, reinforced concrete pipes with concrete outfalls and a turn to redirect the water away from the neighborhood. Once the outfall was completed, a combination of PROPEX^® Pyramattress^® was installed along the channel bottom, while PROPEX Pyramat^® 75 was used to protect the side slopes from potential erosion. These systems are specifically designed to promote vegetation, creating a natural outcome that complements the aesthetic of the neighborhood.

SOLUTION

PROPEX Pyramattress was chosen as a more cost-effective and sustainable alternative to the proposed gabion mattress or rock riprap. The structure's base was filled with stone and topsoil. A separator nonwoven geotextile was placed next and securely fastened. Finally, PROPEX Pyramat 75 High Performance Turf Reinforcement Mat (HPTRM) was installed across the channel and side slopes, effectively capping off the topsoil layer. Sod was then placed on top of the channel and side slopes following the installation. The entire process of installing both PROPEX Pyramattress and PROPEX Pyramat 75 took approximately one week.

According to the contractor, installing PROPEX Pyramattress was easier and more efficient compared to using a gabion mattress. The PROPEX Pyramattress demonstrates superior performance when compared to gabion mattresses, primarily due to its reduced void space, which leads to decreased water velocities within the mattress and at the soil's subgrade below.

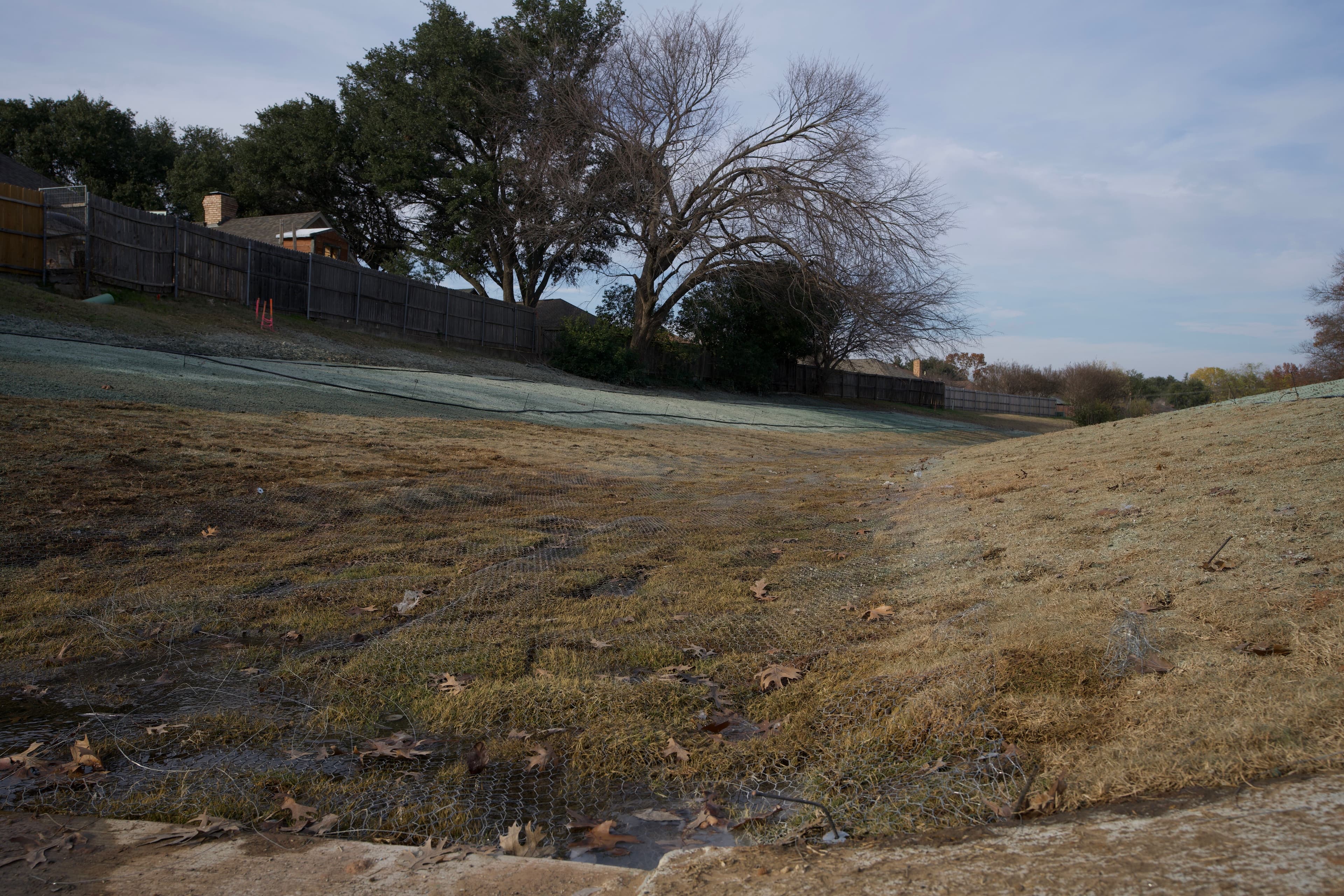

Installing PROPEX Pyramattress was easier and more efficient compared to using a gabion mattress

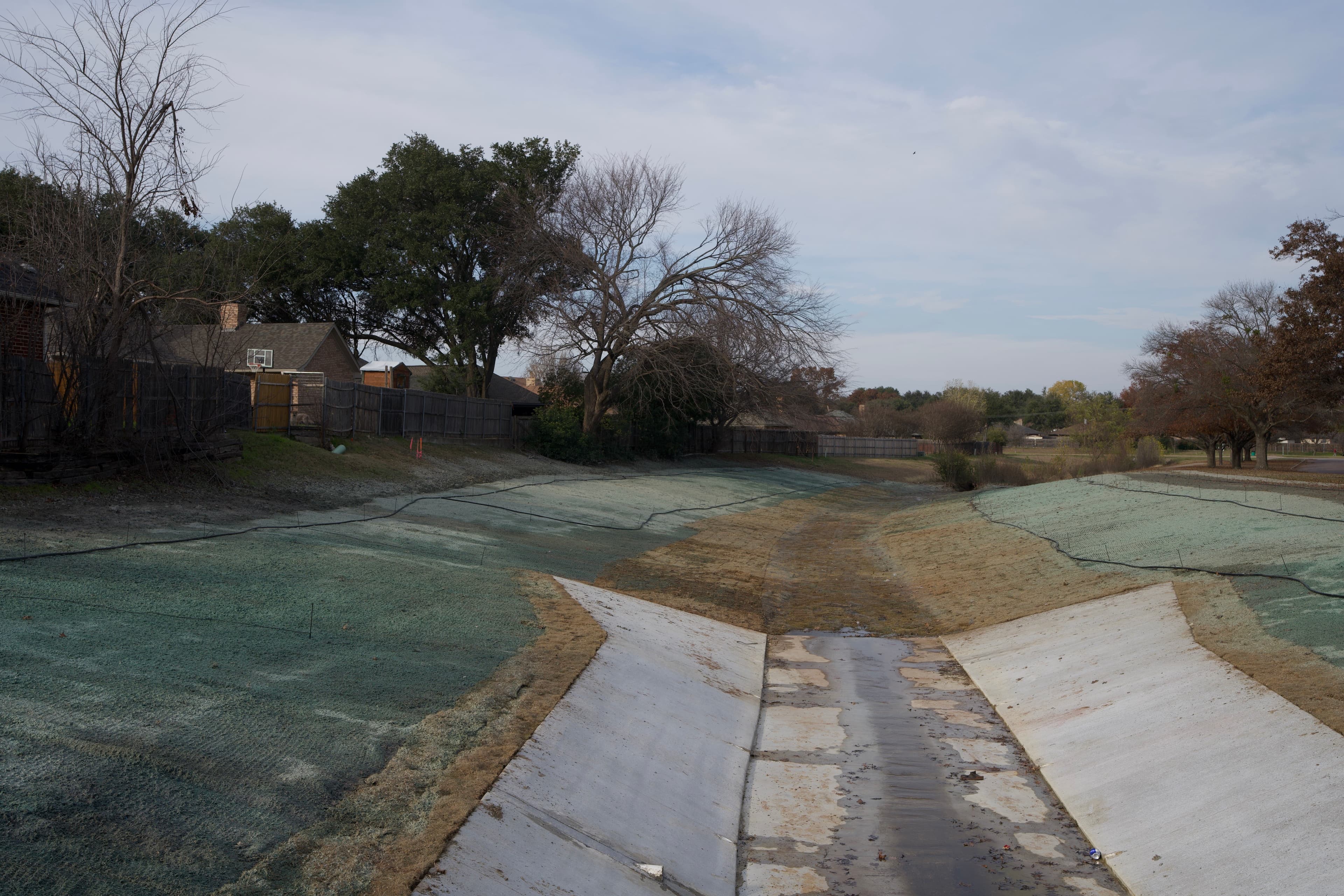

PROPEX Pyramattress was chosen as a more cost-effective and sustainable alternative to the proposed gabion mattress or rock riprap

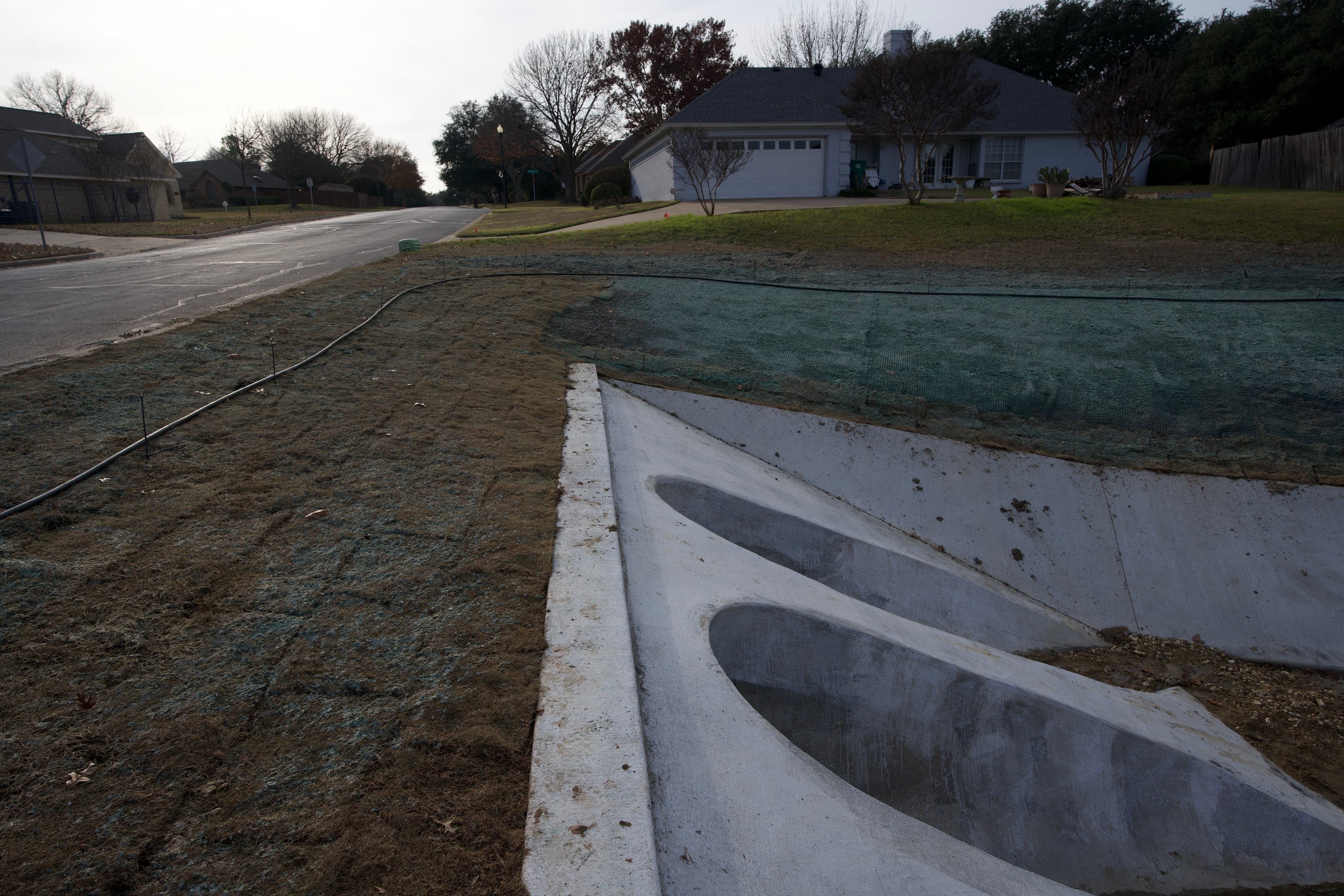

Securing the concrete outfalls to redirect water flow

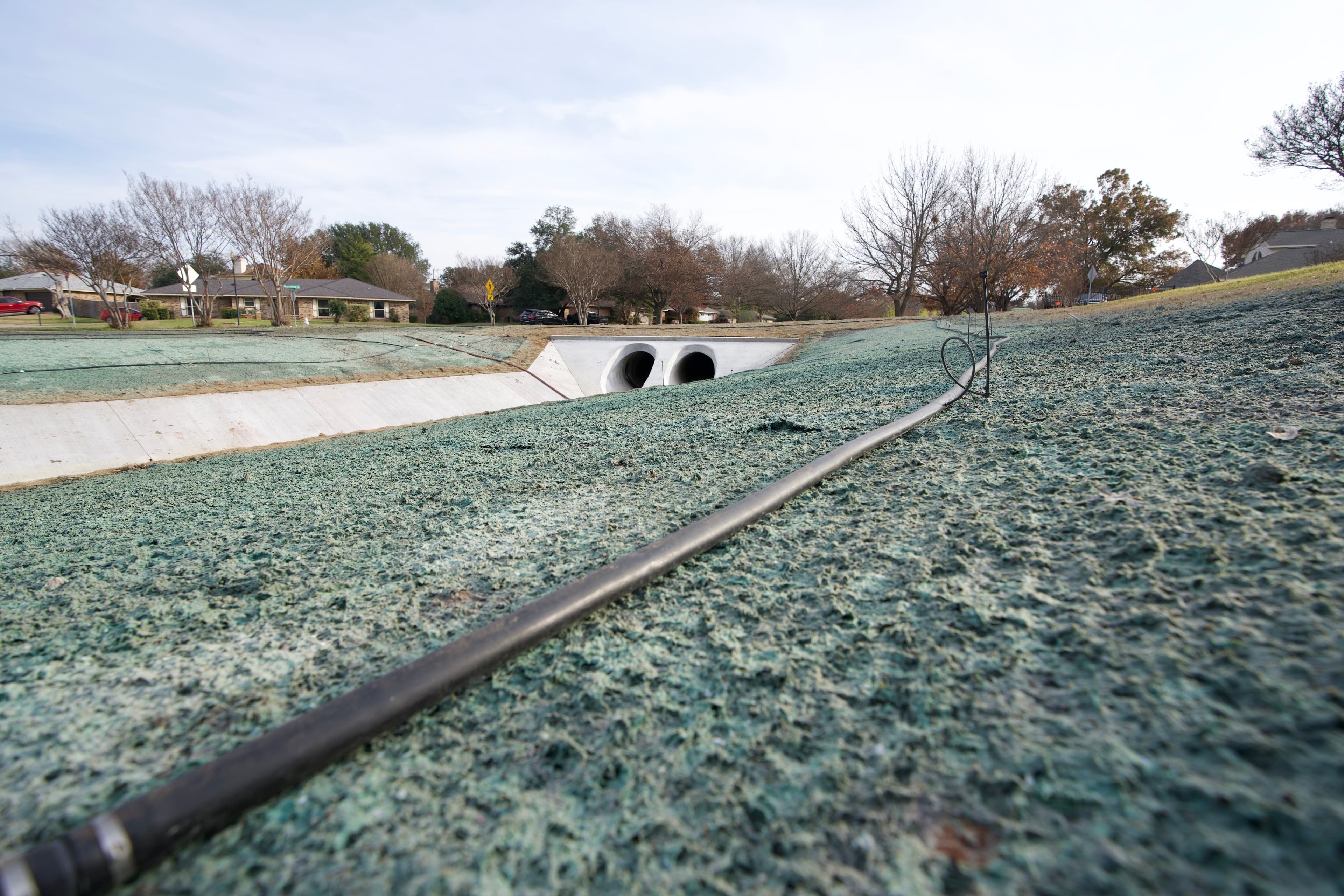

To mitigate the risk, a channel outlet was constructed to divert water away from the endangered houses

These systems are specifically designed to promote vegetation
